Introduction

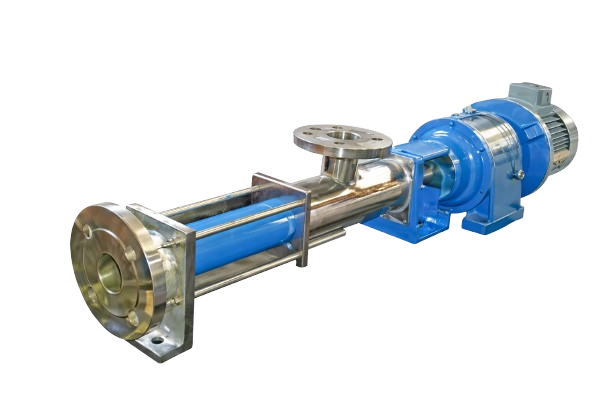

The Eagle AESC Series Screw Pump is a robust progressive cavity pump engineered for handling extremely viscous
and challenging fluids. With its simple yet highly efficient design, it offers reliable performance with minimal
wear and low maintenance requirements.
Description
Screw pump designed to handle highly viscous media such as sludge, slurries, thick non flowing paste and de
watered fibrous type product with viscosities up to 1000000 cP. Option of adjustable stators and varying hopper
sizes to suit the application. Very low internal velocity reduces wear and tear due to erosion. Low operating
noise around 65dB. Simple design of the pump easy and quick maintenance.
Key Features
- Handles viscosities up to 1,000,000 cP
- Option of adjustable stators and varying hopper sizes
- Very low internal velocity – reduces wear & erosion
- Low operating noise (around 65 dB)
- Simple design for easy and quick maintenance
Applications
Efficient for handling highly viscous and fibrous products in the following industries:
- Effluent Treatment
- Mining
- Chemical and Petrochemicals
- Civil Engineering
- Paints & Lacquers
- Fish & Meat Processing
- Beverage Industry
- Dairy, Fruits & Vegetable Processing
- Sweets & Baker’s Wares
- Starch And Agriculture
- Sugar and Distilleries
- Paper & Cellulose
- Ceramics & Insulator
- Cosmetics & Medicines
- Ship-Building & Railways
Technical Specification
- Capacity up to 50 m³/hr (220 GPM)
- Pressure up to 24 Bar (341 Psi)
- Smooth Connections
- Easy Conversion
- Low operating noise ~65 dB
Technical Datasheet
| PUMP MODEL |
CAPACITY
(m³/hr) |
CAPACITY
(GPM) |
MAX. PRESSURE
(Bar) |
MAX. PRESSURE
(Psi) |
VISCOSITY RANGE
(cP) |
NOISE LEVEL
(dB) |
REMARKS |
| AESC-10 |
5 - 15 |
22 - 66 |
24 |
341 |
Up to 1,000,000 |
~65 |
Standard Hopper |
| AESC-20 |
10 - 25 |
44 - 110 |
24 |
341 |
Up to 1,000,000 |
~65 |
Adjustable Stator |
| AESC-30 |
15 - 35 |
66 - 154 |
24 |
341 |
Up to 1,000,000 |
~65 |
Large Hopper Option |
| AESC-40 |
25 - 50 |
110 - 220 |
24 |
341 |
Up to 1,000,000 |
~65 |
High Capacity |
Note: Capacity range depends on viscosity, speed, and hopper size. Higher pressure versions (multi-stage) available on request.
Adjustable stator and different hopper sizes can be customized as per application. Contact us for exact performance curve based on your fluid properties.
Material Options
- Rotor: Hardened Steel / Stainless Steel
- Stator: Natural Rubber / Nitrile / EPDM / Viton (as per fluid)
- Body: Cast Iron / Stainless Steel
- Hopper: Mild Steel / Stainless Steel
Standard Features
- Progressive cavity design for smooth, pulsation-free flow
- Very low internal velocity – minimal wear & erosion
- Easy & quick maintenance due to simple design
- Low noise operation (~65 dB)
- Suitable for continuous duty with highly viscous & fibrous media
