Introduction

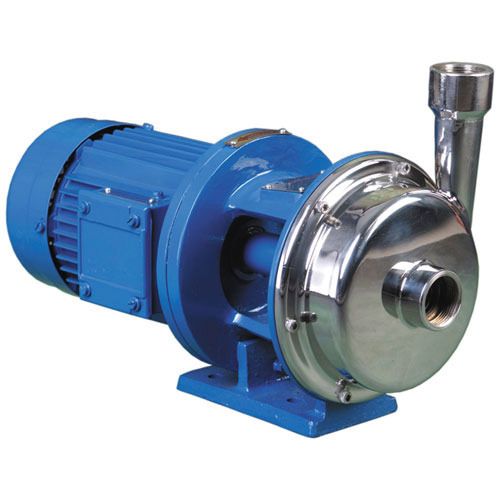

The Eagle EGP Series Sanitary Centrifugal Pump is a highly efficient, hygienic pump designed for the gentle and
reliable transfer of low to medium viscosity fluids. Engineered with superior hygienic standards, it delivers
consistent performance, easy maintenance, and excellent energy efficiency. The pump is ideal for applications
requiring contamination-free operation, low shear, and compliance with stringent hygiene regulations.
Applications
The EGP Series Sanitary Centrifugal Pump is specifically developed for the dairy, food, beverage, brewing,
pharmaceutical, and personal care industries. Its smooth flow characteristics make it perfect for transferring
milk, juices, wines, syrups, creams, CIP solutions, and other clean or slightly viscous liquids. The pump
handles flow rates up to 200 m³/h and heads up to 80 meters (depending on
model).
Benefits
- High efficiency and low energy consumption.
- Superior hygienic design with no dead zones.
- Easy maintenance and quick disassembly for
inspection.
- Robust construction for long service life and
process reliability.
Standard Design
All product-wetted parts are made from AISI 316L stainless steel with an internal surface finish of Ra < 0.8
μm. The open or semi-open impeller design ensures gentle product handling with minimal shear. The pump casing
and impeller are precision-engineered for optimal hydraulic performance and easy CIP cleaning. The motor lantern
and baseplate are available in stainless steel or painted cast iron depending on requirements.
The EGP Series is available with a wide range of mechanical seal options and can be supplied as a bare shaft
pump or as a complete unit mounted on a baseplate with motor, coupling, and guard.

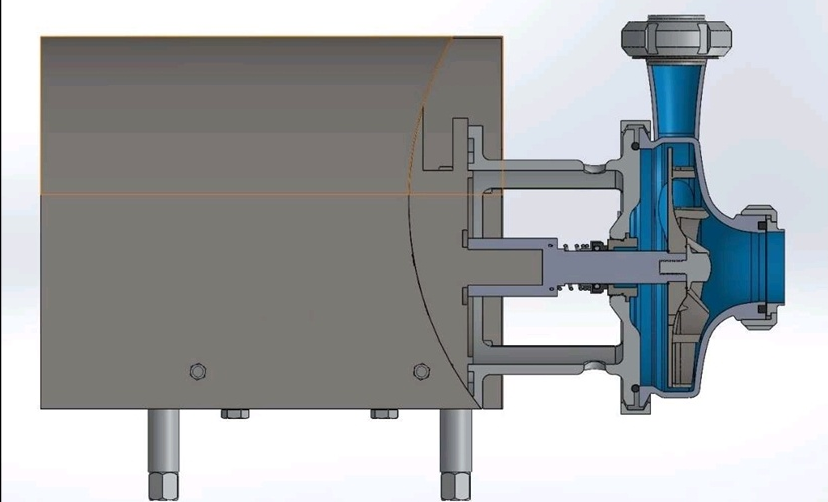

Single Mechanical Shaft Seal of the Pump
The blue region represents water/liquid. The motor and seal are completely separated from the liquid
and will not allow any leakage to enter the motor under any circumstances.
Note: The seal spring is not in contact with the product.

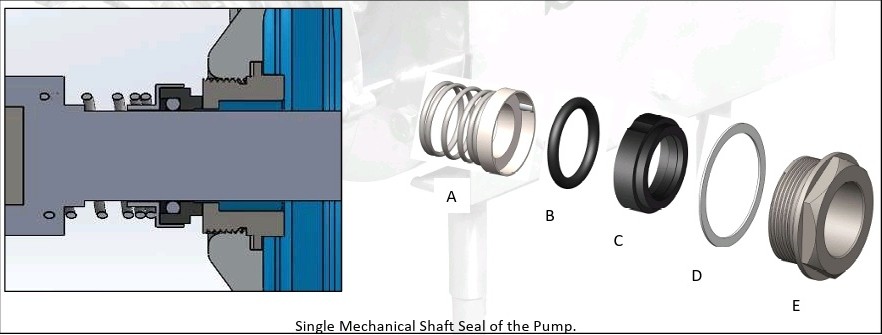

Seal Assembly List :
- A. Coil Spring
- B. Viton O’Ring
- C. Rotary Face
- D. Teflon O’Ring
- E. Stationary Ring (Stationary Face)
Applications Industry
- Dairies & Milk Processing
- Beverages & Soft Drinks
- Food Processing
- Breweries & Distilleries
- Fruit Juices & Concentrates
- Pharmaceuticals & Biotechnology
- Cosmetics & Personal Care
- Chemical Industry
- Water Treatment & Effluent
Treatment
- Paper & Cellulose Industry
and many other industries where sanitary applications are required.
Working Principle
The EGP Series centrifugal pump operates on the principle of centrifugal force. A rotating impeller
accelerates the fluid radially outward, converting rotational energy into kinetic energy and then into
pressure energy as the fluid exits through the discharge port. This design provides smooth, continuous flow
with high efficiency for low to medium viscosity liquids.
Technical Data of Sanitary Pumps
| MODEL |
H.P. |
CONNECTION SIZE |
HEAD (MTRS) |
V/S |
CAPACITY (LPM) |
| EP-CFS-2 |
0.5 |
25X25 |
5MWC
7MWC
9MWC |
|
100LPM
45LPM
135LPM |
| EP-CFS-3 |
1 |
38X38 |
12MWC
15MWC |
|
70LPM
160LPM |
| EP-CFS-4 |
1.5 |
38X38 |
20MWC
15MWC |
|
90LPM
190LPM |
| EP-CFS-5A |
2 |
38X38 |
20MWC
10MWC |
|
105LPM
250LPM |
| EP-CFS-5B |
2 |
51X51 |
15MWC
20MWC |
|
85LPM
250LPM |
| EP-CFS-6A |
3 |
51X38 |
25MWC
15MWC |
|
180LPM
330LPM |
| EP-CFS-6B |
3 |
51X51 |
25MWC
24MWC |
|
160LPM
260LPM |
| EP-CFS-7A |
5 |
51X38 |
32MWC
24MWC |
|
190LPM
300LPM |
| EP-CFS-7B |
5 |
63X51 |
32MWC
28MWC |
|
180LPM
280LPM |
| EP-CFS-8A |
7.5 |
51X38 |
36MWC
20MWC |
|
225LPM
450LPM |
| EP-CFS-8B |
7.5 |
63X51 |
32MWC
28MWC |
|
230LPM
370LPM |
| EP-CFS-9 |
10 |
63X51 |
40MWC |
|
150LPM |
Technical Specification
- All pumps are characterized by high
efficiency, low energy consumption and minimal operating and maintenance costs.
- Discharge pressures up to 7.5 bar
- System pressures up to 16 bar
- Flow rates up to 100m³/h
- 8 different sizes
- Material of construction: SS316/SS304
Flows / Heads / Connections (EGP Series)
| # |
Pump Model |
Max Flow (m³/h) |
Inlet / Outlet Size |
Max Head (m) |
Max Speed (rpm) |
| 1 |
EGP-10 |
5 |
1" |
20 |
2900 |
| 2 |
EGP-20 |
15 |
1.5" |
30 |
2900 |
| 3 |
EGP-30 |
30 |
2" |
40 |
2900 |
| 4 |
EGP-40 |
60 |
2.5" |
50 |
2900 |
| 5 |
EGP-50 |
100 |
3" |
60 |
2900 |
