Introduction

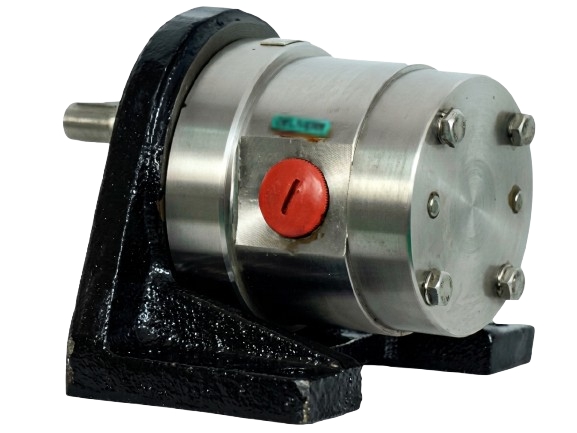

The Eagle AEG Series Rotary Gear Pumps are robust positive displacement pumps engineered for handling a wide
range of viscous fluids.
Manufactured with high precision, these pumps are available in two material constructions:
Stainless Steel (SS-316 Investment Casting) for hygienic and corrosive applications,
and Cast Iron (CI) for general industrial use.
Applications
Suitable for transferring oils, chemicals, paints, resins, food products, pharmaceuticals, and other viscous
liquids
in industries requiring reliable and consistent flow.
Benefits
- Double helical gear design for smooth and silent
operation
- High efficiency with low power consumption
- Nitrided gears and shafts for longer life
- PTFE coated bush for smooth performance
Applications Industry
- Chemical Industry
- Pharmaceutical Industry
- Dyeing & Printing Houses
- Paint Industry
- Food & Beverages
- Cosmetic Industries
- Oil & Petroleum
- Resins & Adhesives
and many other industries handling viscous fluids.
Technical Specification
- Complete SS-316 Investment Casting (for SS
models)
- Cast Iron Construction (for CI models)
- Nitrided Gears and Shafts for Longer Life
- PTFE Coated Bush for Smooth Performance
- Optimum Internal Clearance for Accurate
Capacity
- Low Power Consumption
- Double Helical Gear Design
Technical Data
| PUMP MODEL |
SUCTION AND DELIVERY |
CAPACITY AT 1440 RPM
LPM |
US M3/HR |
MAX. PRESSURE
KG/CM² |
MOTOR H.P. REQ. |
WT OF BARE PUMP (KG.) |
| AEG-50 |
½" x ½" |
25 |
6.6 |
1.5 |
10 kg |
1 HP |
3.50 |
| AEG-75 |
¾" x ¾" |
33 |
8.8 |
2.0 |
10 kg |
1 HP |
4.50 |
| AEG-100 |
1" x 1" |
50 |
13.2 |
3.0 |
10 kg |
1.5 HP |
5.0 |
| AEG-125 |
1 ¼" x 1 ¼" |
100 |
26.4 |
6.0 |
10 kg |
2 HP |
7.0 |
| AEG-150 |
1 ½" x 1 ½" |
125 |
33 |
7.5 |
10 kg |
3 HP |
10.50 |
| AEG-200 |
2" x 2" |
150 |
39.6 |
9.0 |
10 kg |
5 HP |
20.50 |
| AEG-200 |
2" x 2" |
200 |
52.8 |
12.0 |
10 kg |
7.5 HP |
24.0 |
| AEG-250 |
2 ½" x 2 ½" |
250 |
66 |
15.8 |
10 kg |
12.5 HP |
35.0 |
| AEG-250 |
2 ½" x 2 ½" |
300 |
79.2 |
18.0 |
10 kg |
12.5 HP |
40.0 |
Material Options
- Stainless Steel Gear Pump – SS 316 Investment Casting (Food grade / Corrosive
liquids)
- Cast Iron Gear Pump – CI Body with SS internals (General industrial use)
Standard Features
- Available in SS-316 and Cast Iron versions
- Compact and rugged design
- Easy maintenance
- Suitable for continuous duty
