Introduction
Eagle Mechanical Seals are high-quality sealing solutions designed for various rotating equipment including chemical process pumps, food pumps, pharmaceutical pumps, centrifugal pumps, vacuum pumps, agitators, and vessels.
These seals effectively prevent leakage of fluids while ensuring long service life even in corrosive and viscous applications.
All metal components are available in **Stainless Steel SS-316** (standard for corrosion resistance) along with Alloy-20 for aggressive chemicals.
We offer equivalent complete mechanical seals and spares for brands like Fristam, KSB, Johnson, Alfa Laval, IDMC, Grundfos, John Crane, Burgmann, Flow Serve, Dura Metallic, AES, etc.
Applications
Ideal for sealing in pumps handling chemicals, viscous liquids, food products (milk, ghee, syrups), pharmaceuticals, corrosive fluids, oils, resins, and other process liquids.
Suitable for both standard and custom-designed requirements.
Benefits
- SS-316 and Alloy-20 metal parts for excellent corrosion resistance
- Wide range of seal face materials – Carbon, Ceramic, Silicon Carbide, Tungsten Carbide
- Secondary seals in PTFE, Viton, EPDM, Rubber for chemical compatibility
- Single Spring, Multi Spring, Bellows (Rubber & PTFE), Cartridge types available
- Custom design & manufacturing as per customer requirement
- Repair and maintenance services for any make of mechanical seals
Applications Industry
- Chemical Industry
- Pharmaceutical Industry
- Food & Dairy Industry
- Paint & Resin Industry
- Oil & Petroleum
- Cosmetic Industries
- Dyeing & Printing
- General Process Pumps & Agitators
and many other industries handling corrosive or viscous fluids.
Technical Specification
- Metal Parts: SS-316, Alloy-20 (High corrosion resistance)
- Seal Faces: Carbon, High Alumina Ceramic, Silicon Carbide (SiC), Tungsten Carbide (TC), Carbon Graphite
- Secondary Seals: PTFE, Viton, EPDM, Silicone Rubber, GFT, CFT
- Types: Single Spring, Multi Spring, Rubber Bellow, PTFE Bellow, Cartridge, Balanced & Unbalanced
- Equivalent to John Crane, Burgmann, Flow Serve, Alfa Laval, Grundfos, IDMC etc.
- Custom design and manufacturing as per customer requirement
- Repair & maintenance of any make of mechanical seals
Types of Mechanical Seals

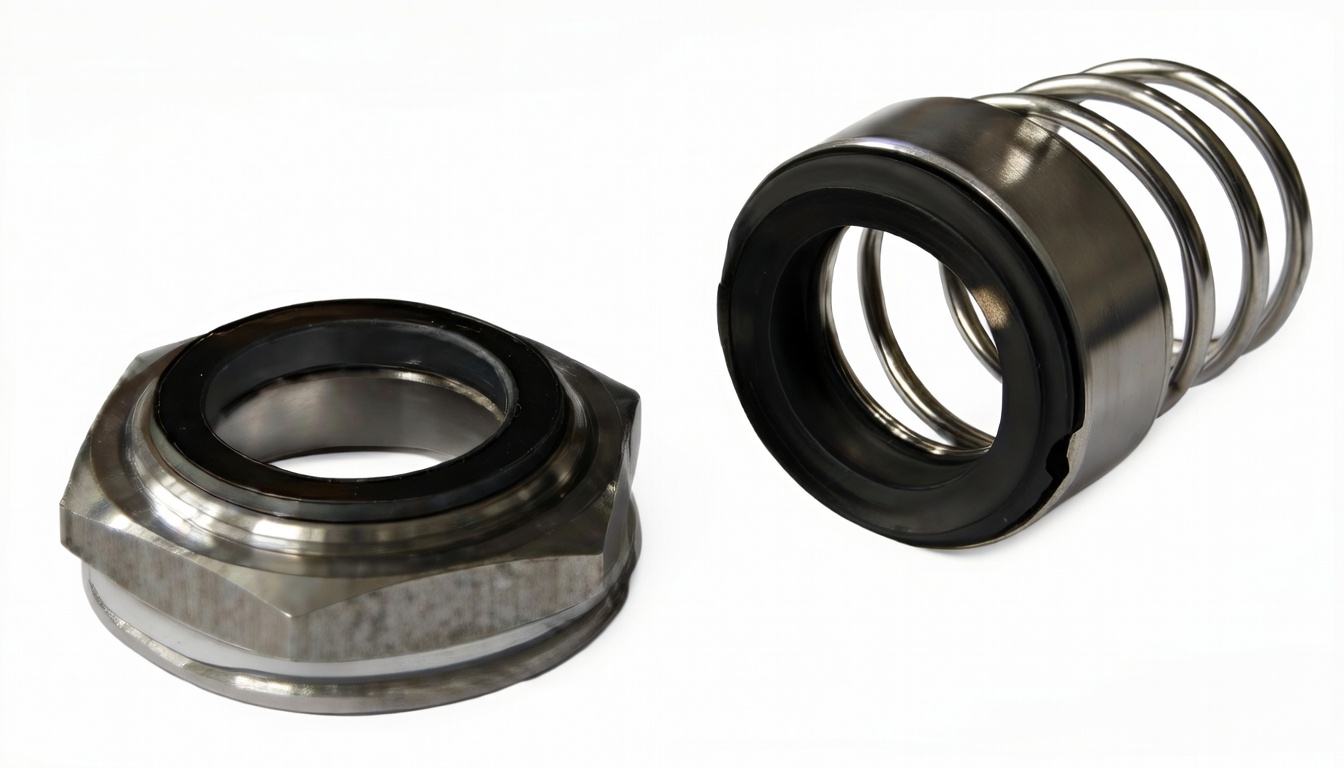

ALFA LAVAL GM
Standard for dairy & food pumps

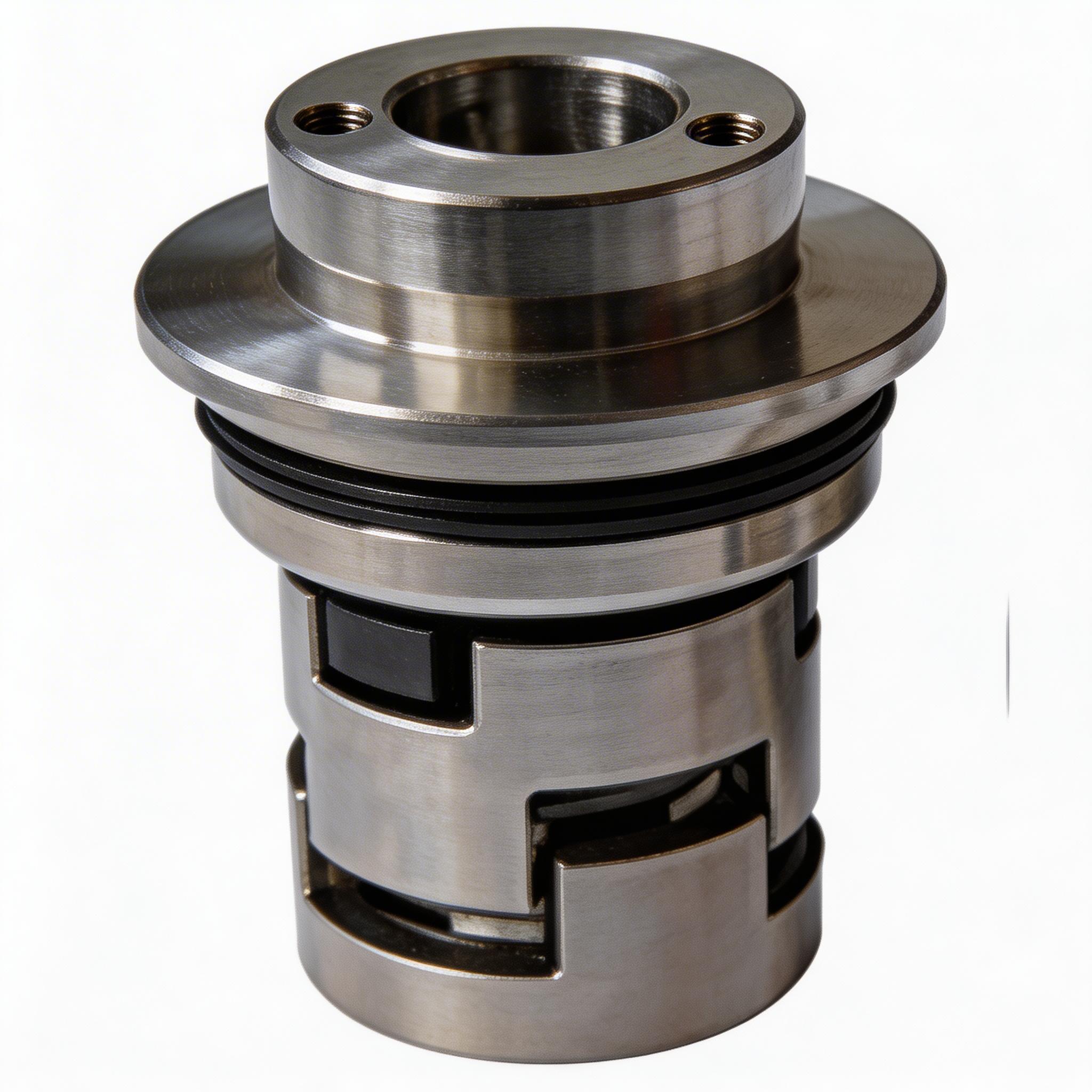

GRUNDFOS CARTRIDGE SEAL
Easy installation cartridge type

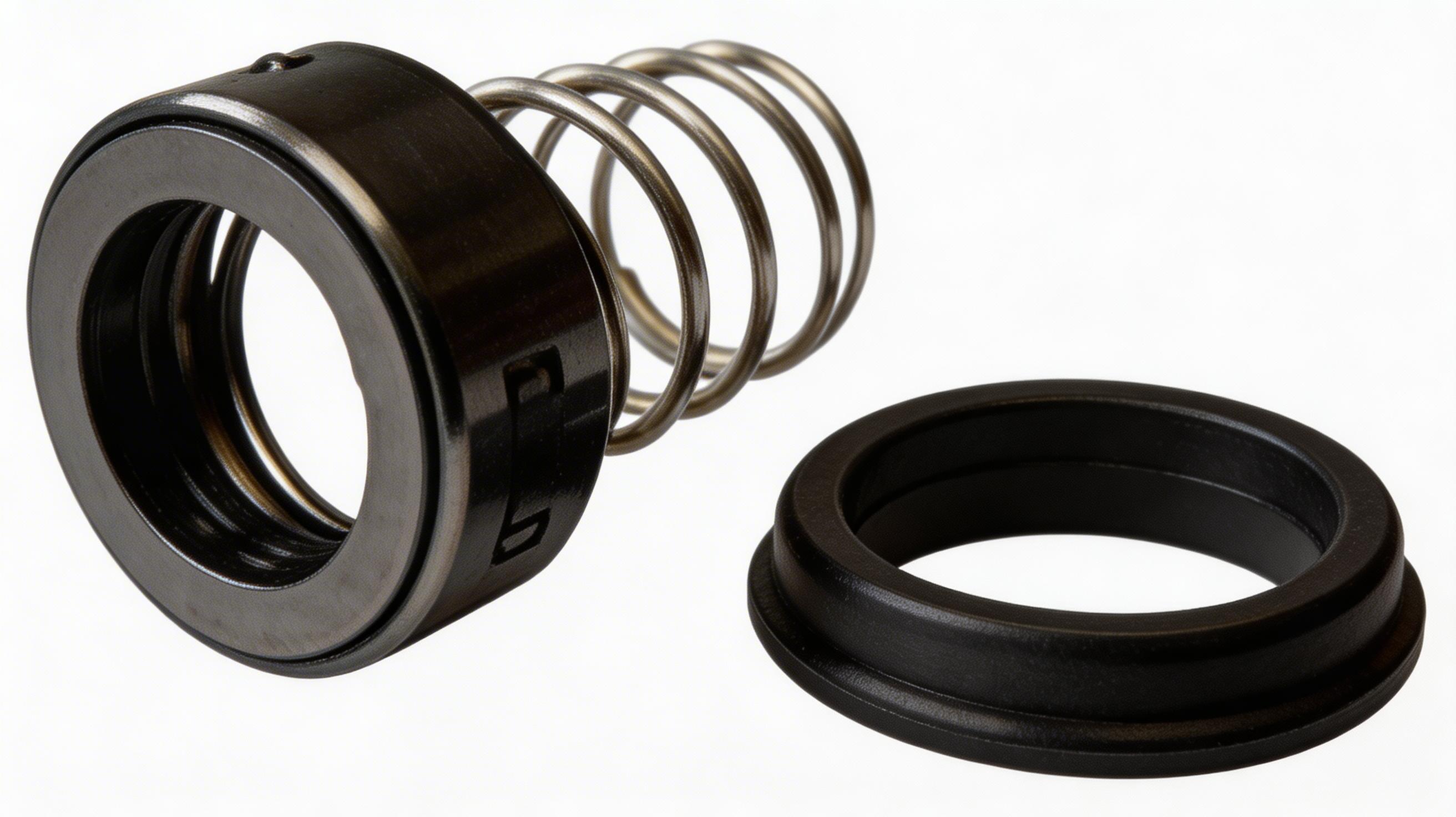

HMT
High performance seal

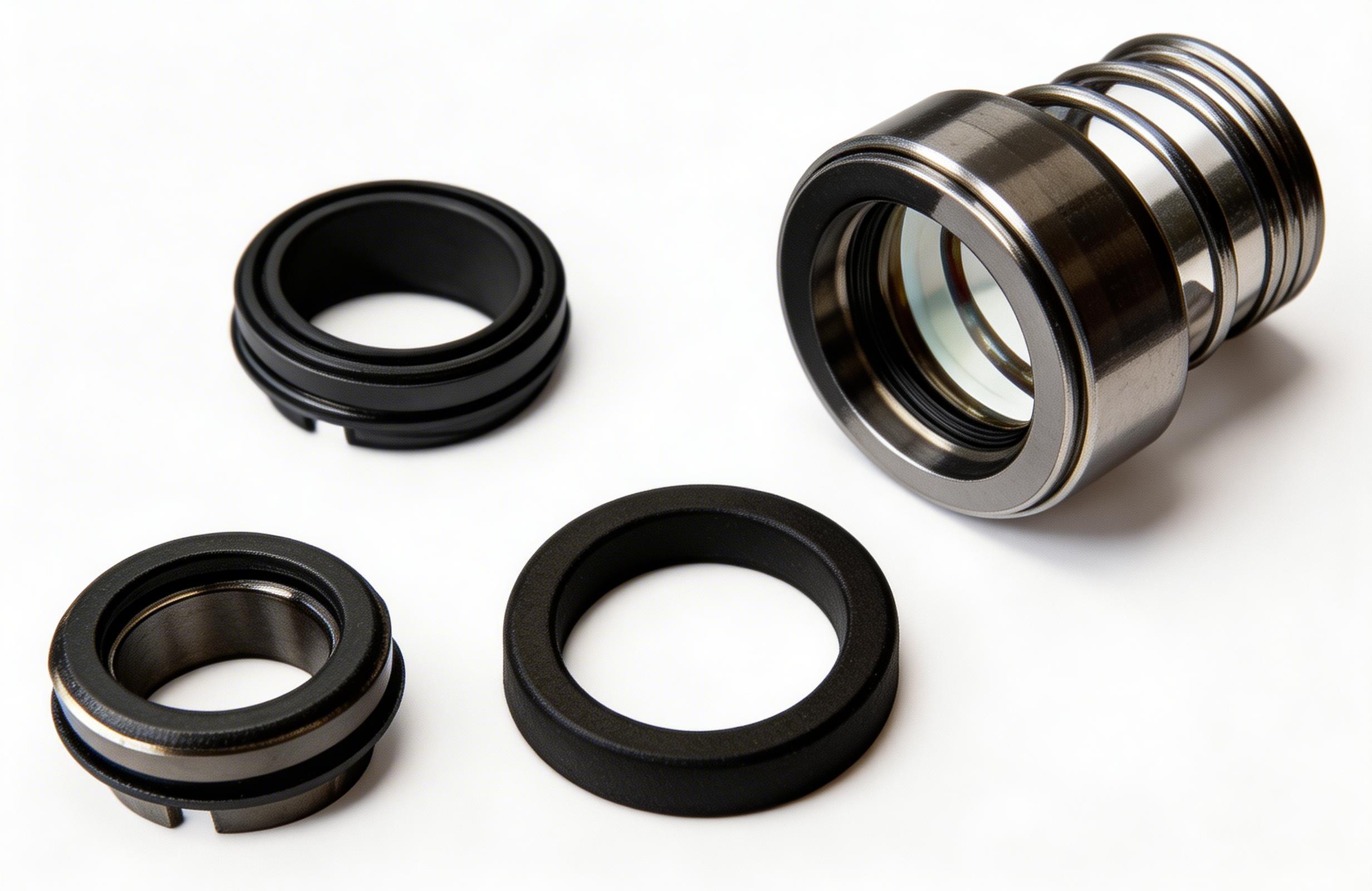

IDMC SEAL
For food & pharma pumps

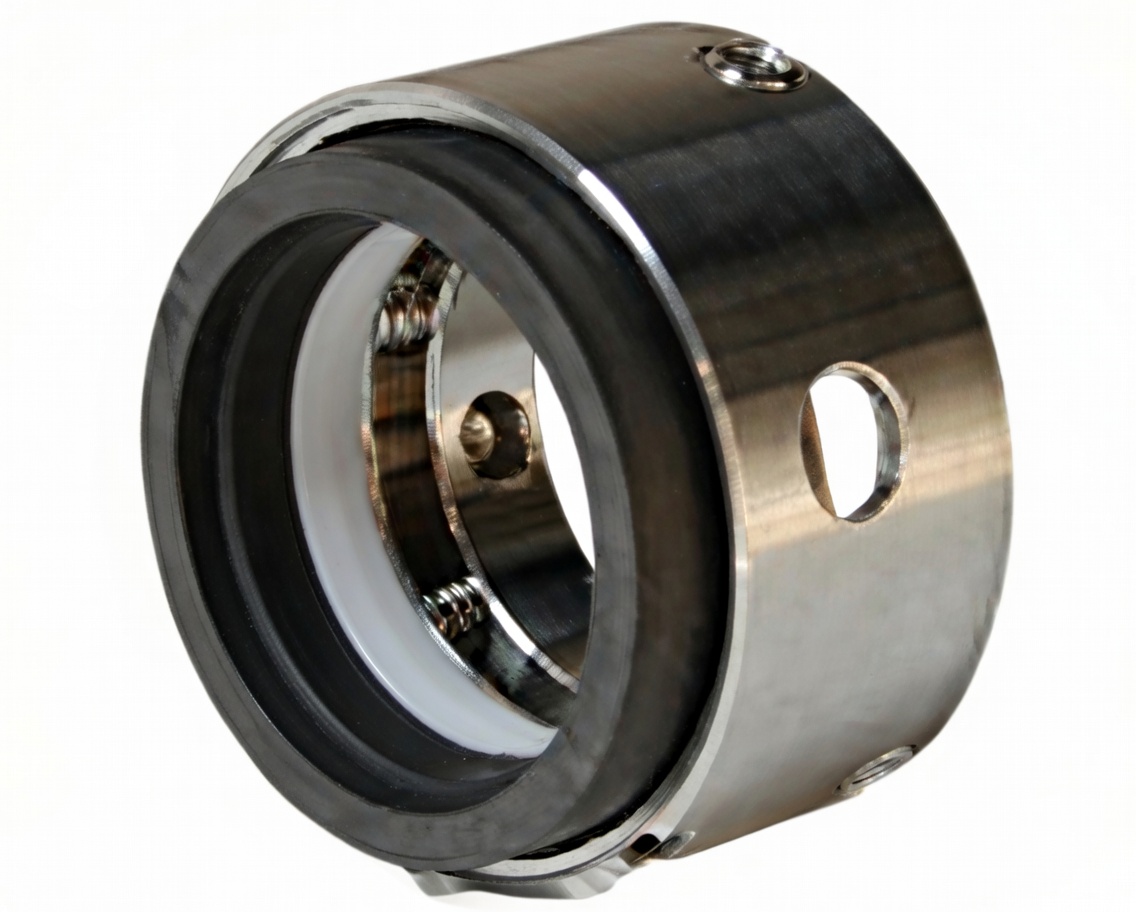

MULTI SPRING SEAL
Balanced for higher pressure

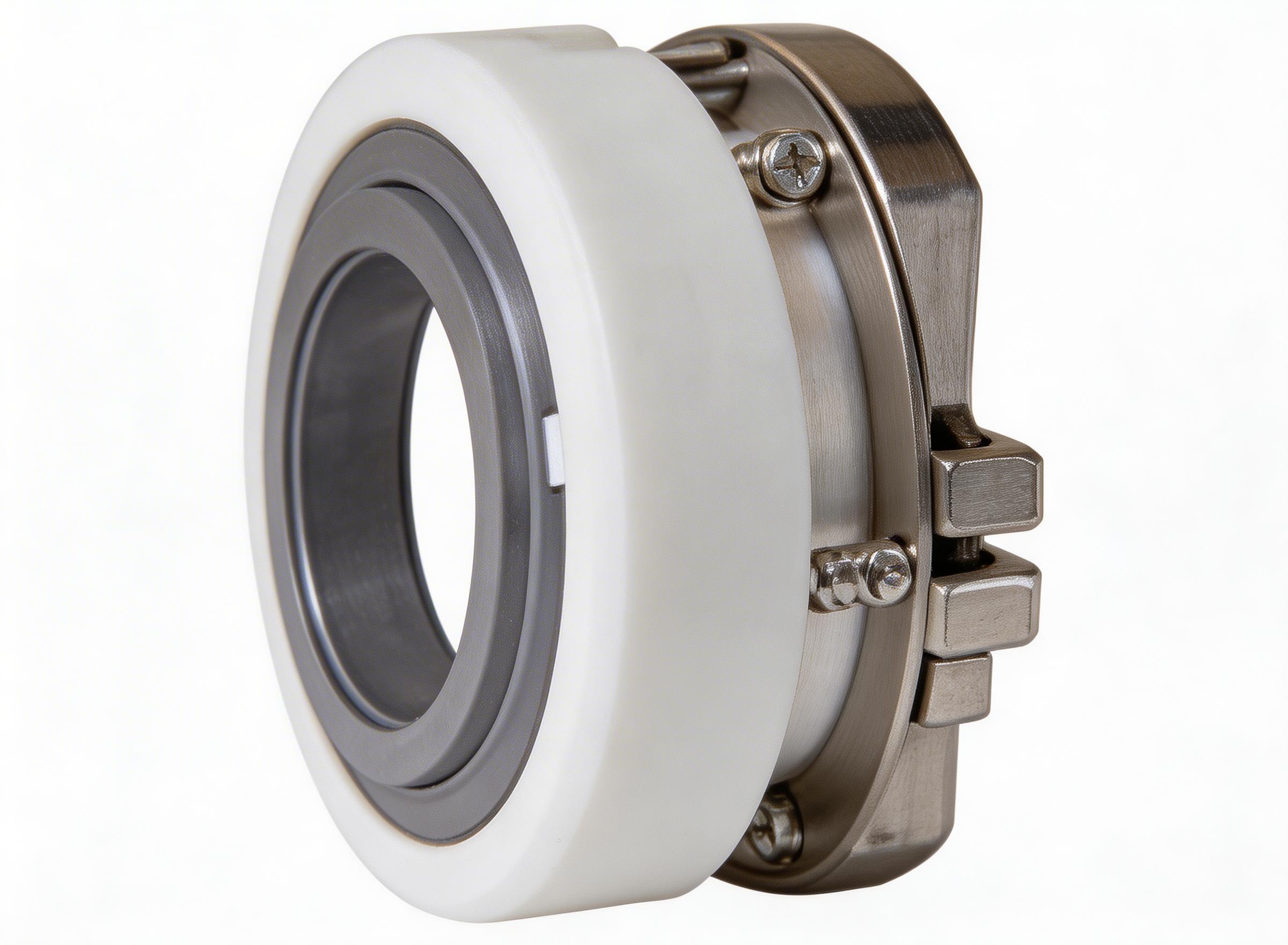

PTFE BELLOW SEAL
Excellent chemical resistance

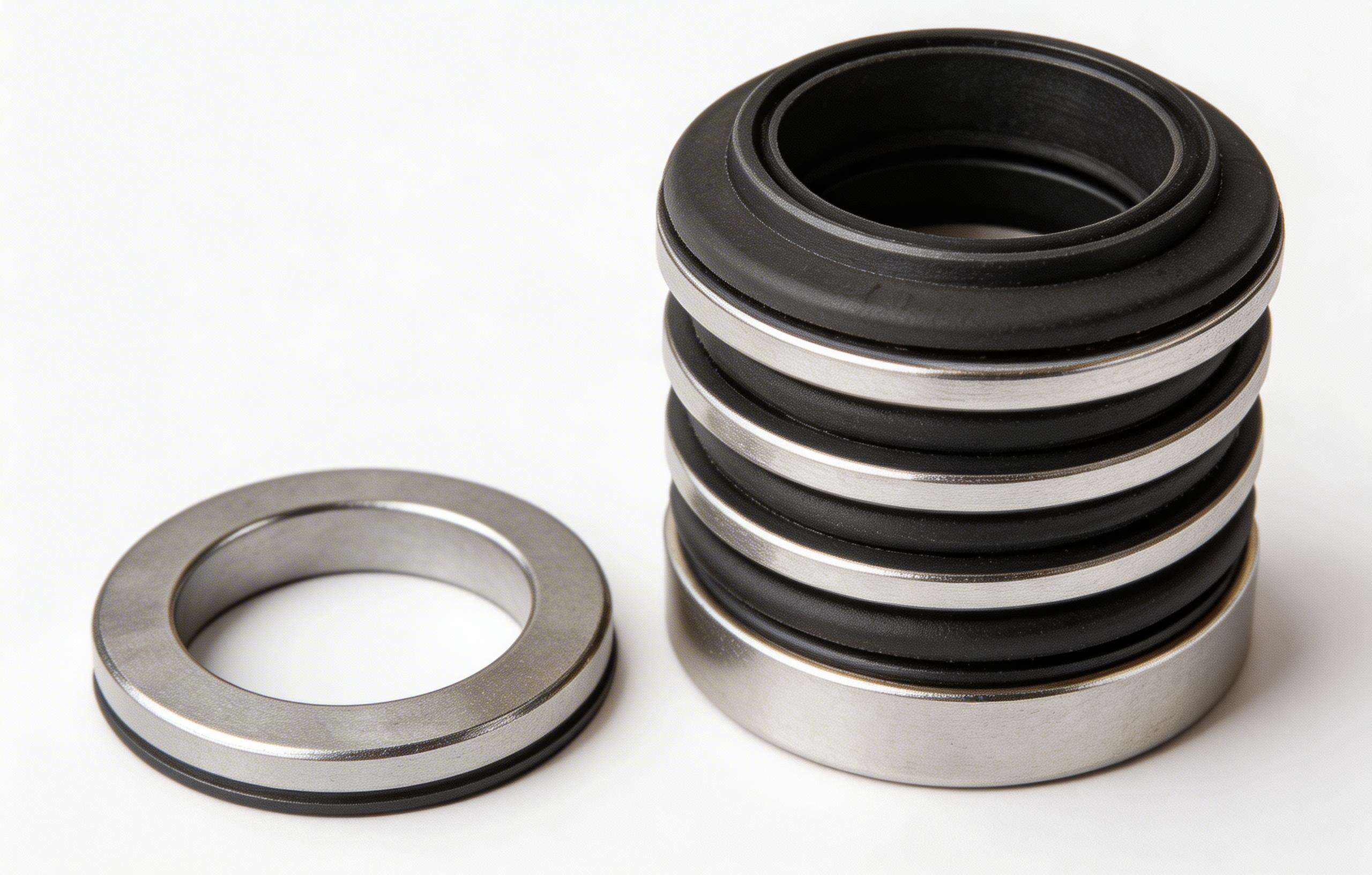

RUBBER BELLOW SEAL
Cost effective for general use

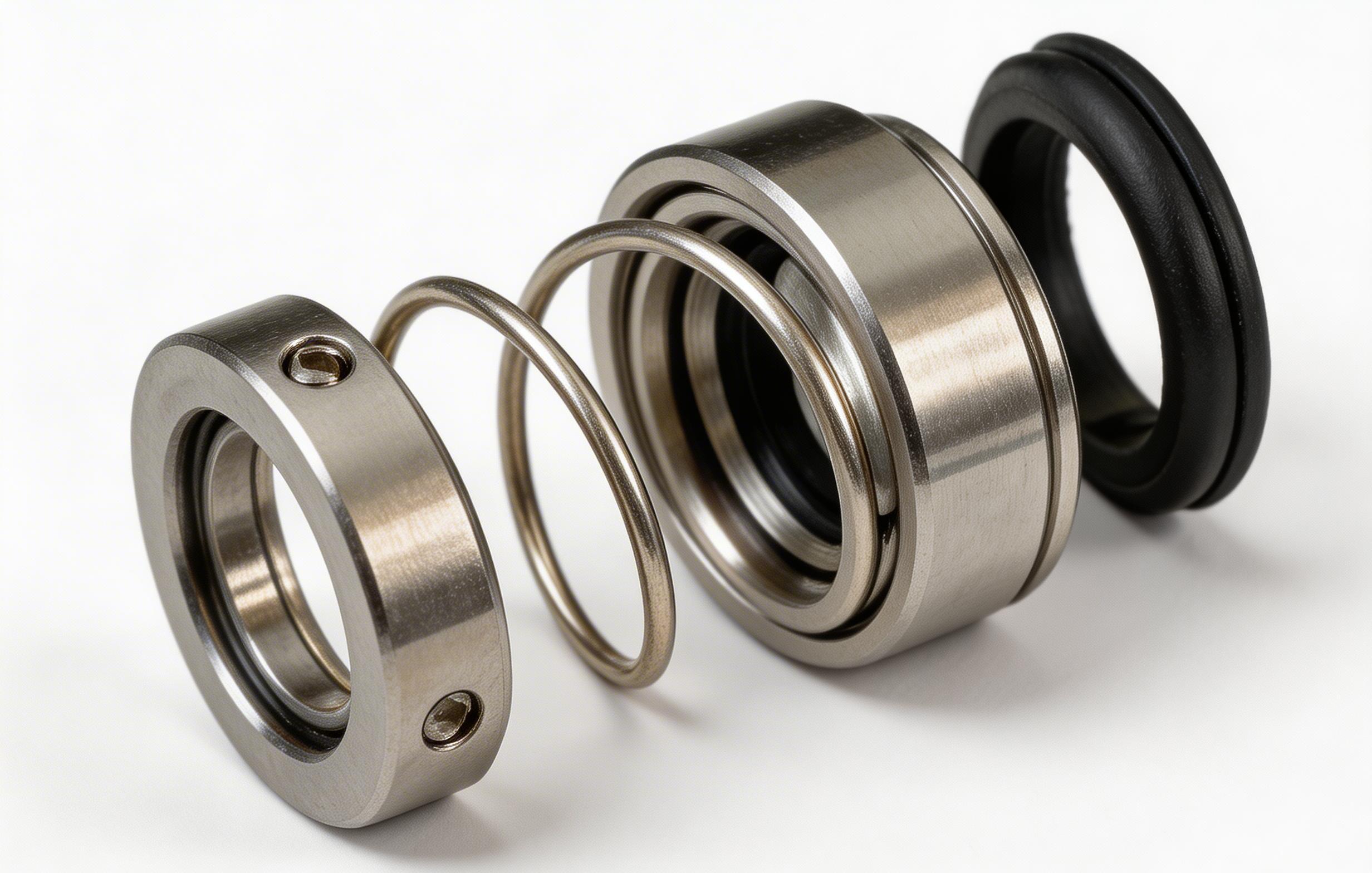

SINGLE SPRING SEAL
Simple & reliable design
MECHANICAL SEAL
General purpose with SS-316
Material Options (SS Focus)
- Stainless Steel SS-316 – Springs, retainers & hardware (excellent corrosion resistance for food & chemical duty)
- Alloy-20 – For highly corrosive acids
- Seal Faces – Carbon vs Ceramic / SiC / TC
- Elastomers – PTFE, Rubber, Viton, EPDM
Standard Features
- SS-316 construction for hygienic and corrosive applications
- Wide compatibility with Eagle Rotary Gear Pumps and other makes
- Easy installation and low maintenance
- High reliability with minimal leakage
- Custom solutions and repair services available
